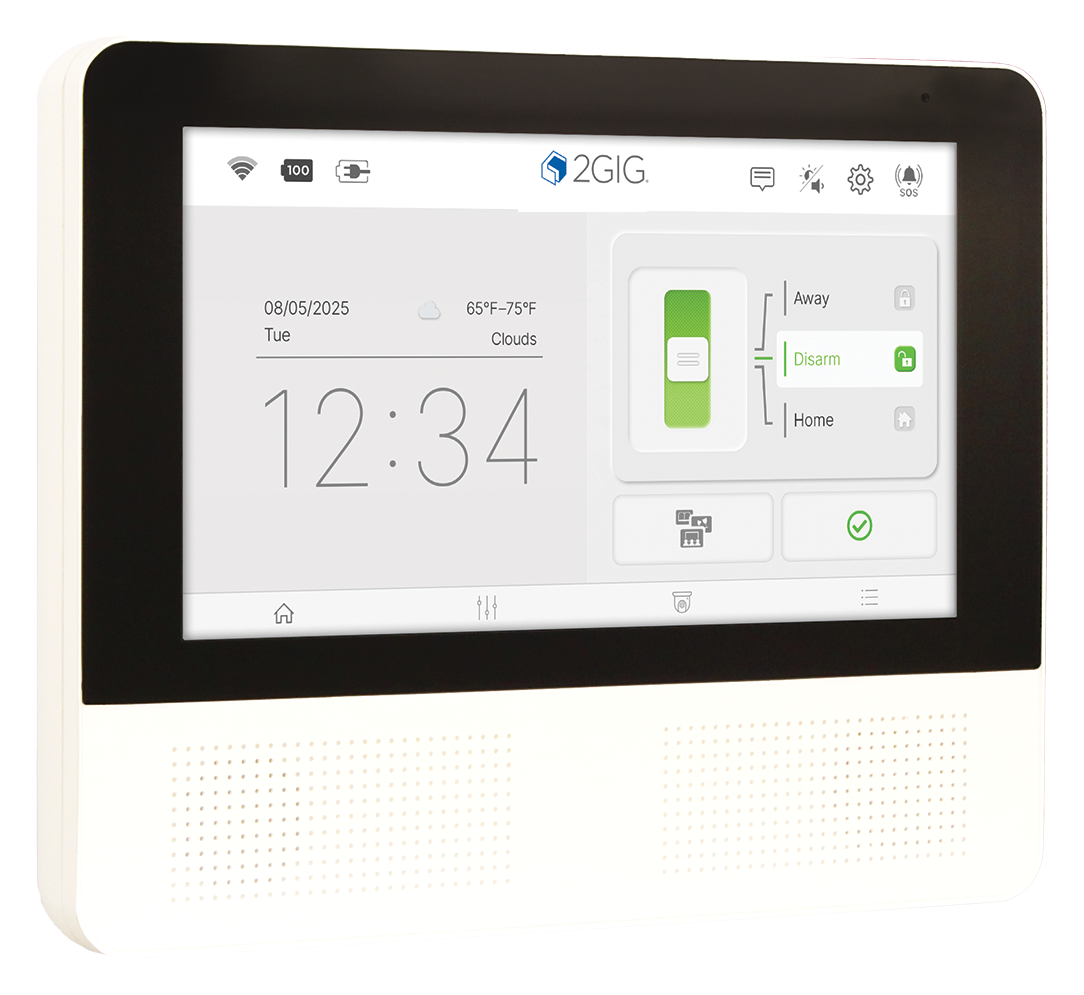

GC Touch 3-1
The entire house is one zone, with a dark screen mode.
- 2GIG GC Touch panel
- 3 door or window contacts
- 1 motion detector
- Front, back, and garage entry
Residential Security Packages for North Texas
SmartSpace Automation designs two residential alarm packages for homes across Dallas and North Texas. Both are a 3-1: three door or window contacts and one motion. The GC Touch sees the entire house as one zone, so the home arms together. The EDGE can see the house as multiple zones. The bedrooms can stay unarmed while a downstairs zone stays armed.
Get a QuoteChoose a Package
A 3-1 counts three contacts and one motion. The panel is separate from that count. Monitoring is its own monthly service.

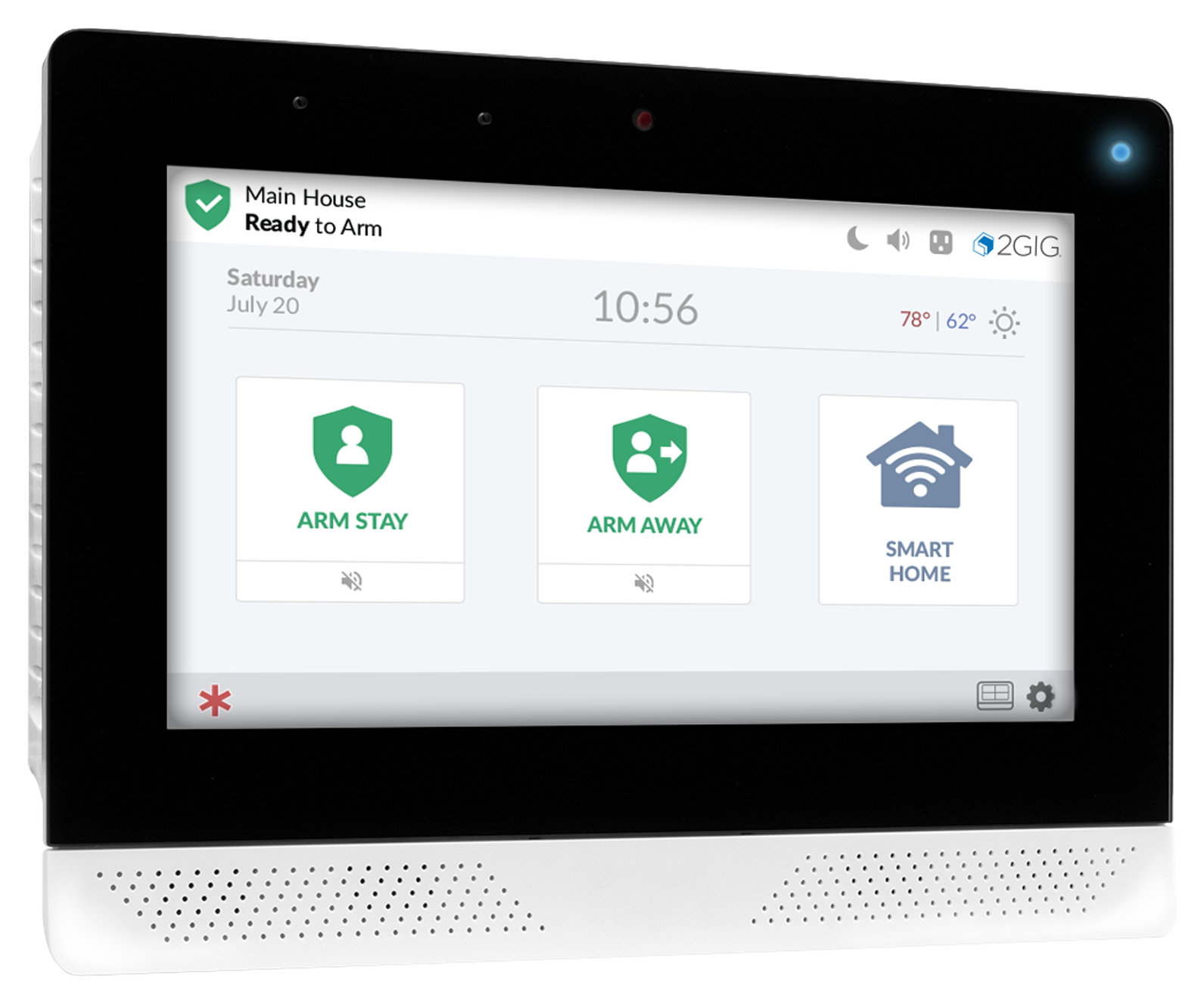

EDGE 3-1
Same 3-1 sensors. The house can be multiple zones, so the bedrooms can stay unarmed while a downstairs zone stays armed.
- 2GIG EDGE panel
- 3 door or window contacts
- 1 motion detector
- Bedrooms unarmed, downstairs zone armed

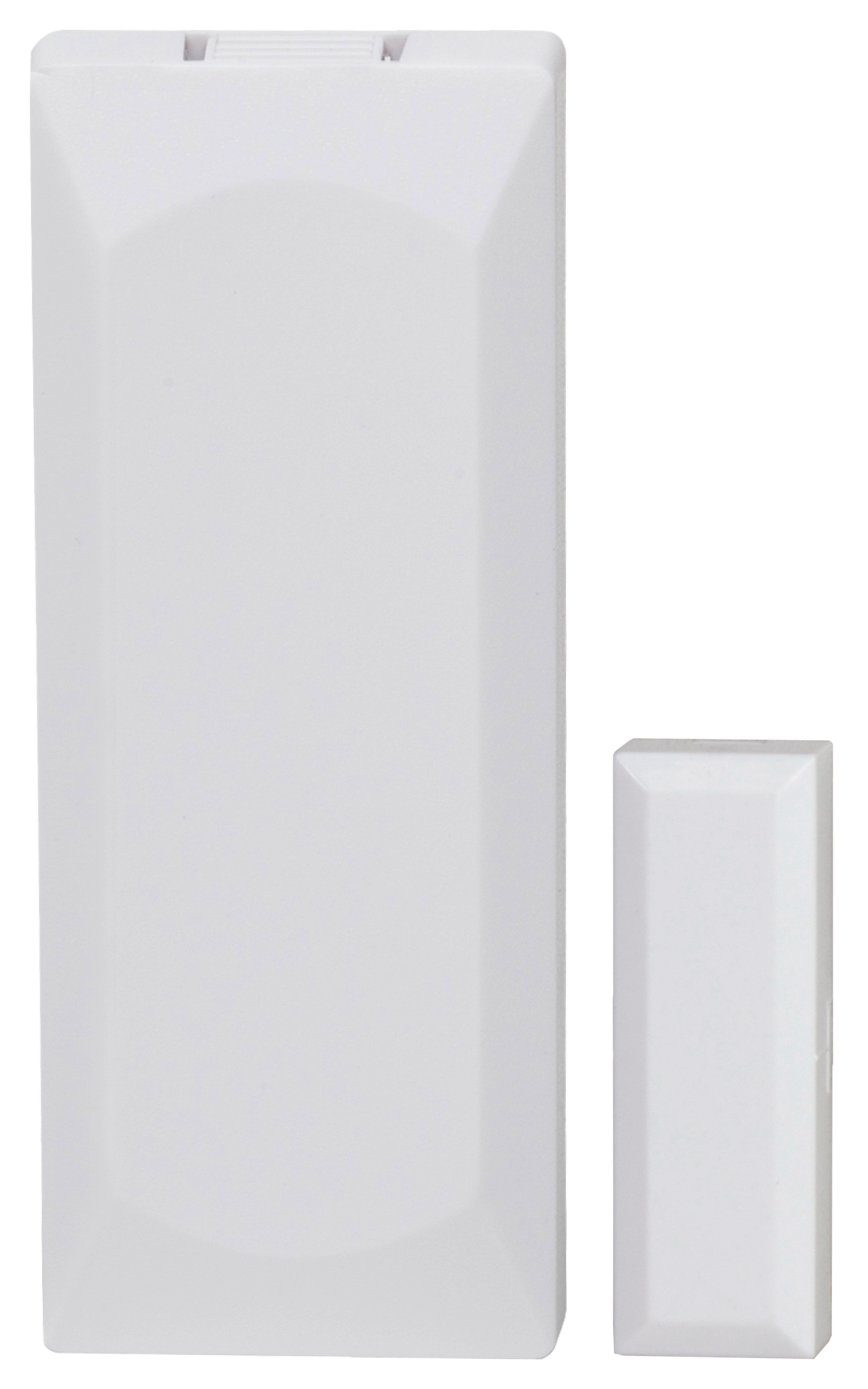

Door and Window Contact
Three of these. Front door, back door, and the garage entry.

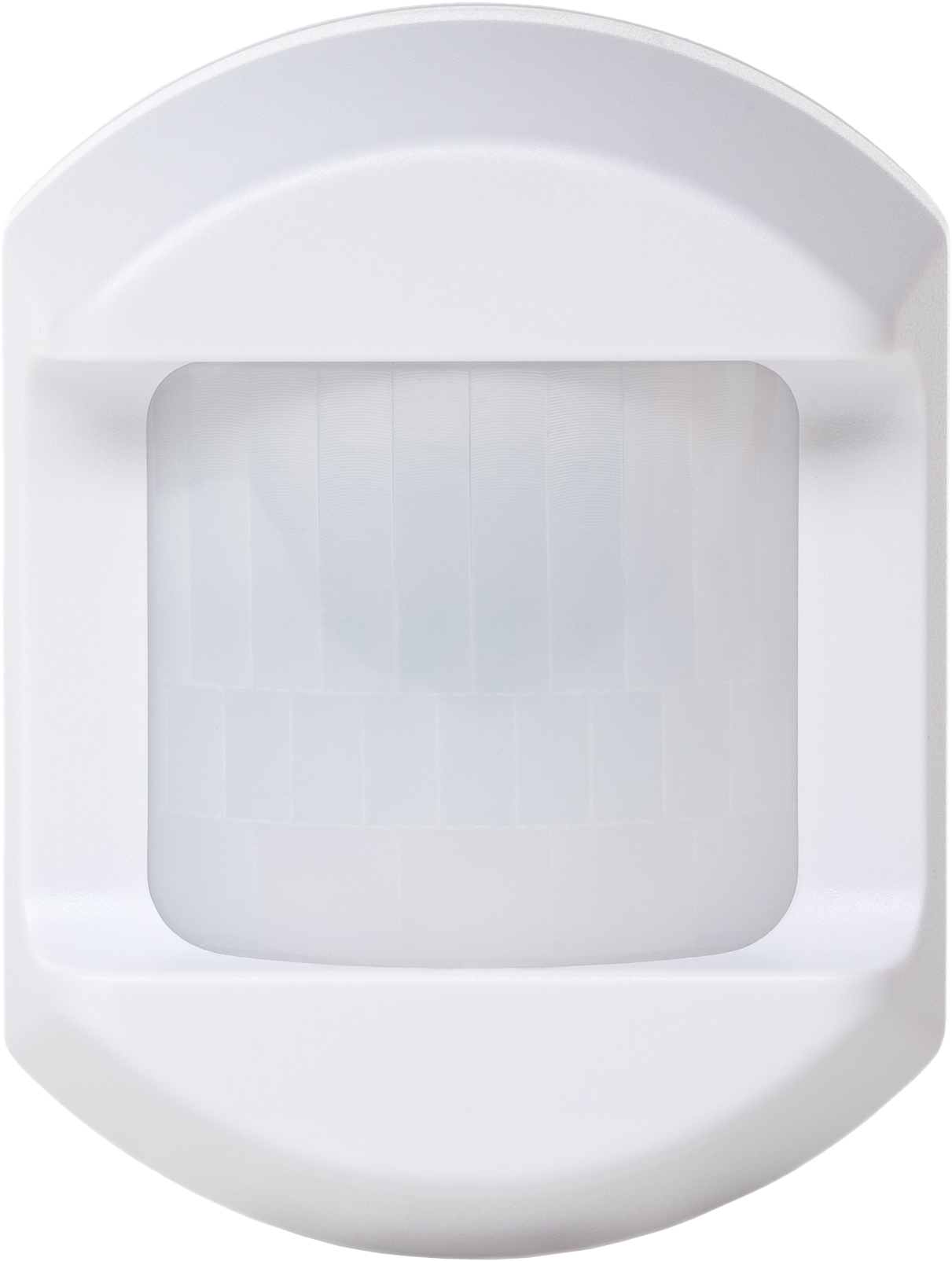

Motion Detector
One of these, on the room or hall people have to cross.
Included with Every SmartSpace Panel
These are built into the panel SmartSpace installs.
- Touchscreen keypad
- Siren
- Backup battery
- Plug-in transformer
- Wi-Fi and cellular communicator
- Alarm.com app for alerts and remote control
- Voice activation with Alexa or Siri
Added if You Ask
The 3-1 is where SmartSpace starts. Ask us to add any of these.
- Additional door or window contacts
- Additional motion detectors
- Keyfob
- Smoke or carbon monoxide detector
- Glass-break sensor
- Second keypad
- Cameras
Ready to Secure
Your Home?
Get a Quote
How the Panels Differ
Both packages use the same 3-1 sensors. The GC Touch sees the entire house as one zone. When that zone is armed, the whole home is armed. The EDGE can see the house as multiple zones, up to four. The bedrooms can stay unarmed while a downstairs zone stays armed. A home office, a guest suite, or a parent’s rooms can be their own zone and stay lived-in while the rest of the house is armed. That is also how age-in-place works.
| Feature | GC Touch | EDGE |
|---|---|---|
| Panel | ||
| Touchscreen | 7 inch | 7 inch |
| Face recognition disarm | — | Yes. Recognition stays on the panel. |
| Bluetooth disarm | Yes | Yes |
| Dark screen mode | Yes | — |
| Live video on the panel | Up to 6 cameras | Up to 8 cameras |
| Cameras on the panel | Alarm.com | Alarm.com or ONVIF S Series |
| Doorbell on the panel | Two-way talk | Two-way talk, and unlock the door |
| Glass-break listening in the panel | — | Yes |
| Personal code | 4 or 6 digits | 6 digits |
| Security | ||
| Zones | One. The entire house is one zone. | Up to four. The bedrooms can stay unarmed while a downstairs zone stays armed. A guest suite, a home office, or a parent’s rooms can be their own zone. |
| Users | 64 | 100 |
| Wireless sensors | 128 | 100 |
| Sensors | 345S | 345S and E+ Long Range |
| Fire, medical, and police | Yes | Yes |
| Extra keypads | Supported | Up to 8 |
| Keyfobs | Supported | Up to 32 |
| Audio | ||
| Two-way voice | Yes | Yes |
| Speakers | One, in the front | Two, in the front |
| Microphones | With the two-way voice | Two, with noise and echo cancellation |
| Siren | Yes | Yes |
| Chimes when a door opens | Yes | Yes |
| Home | ||
| Z-Wave | 800 series | Z-Wave Plus |
| Scenes and schedules | Alarm.com | Alarm.com, Control4, and ELAN |
| Voice activation | Alexa or Siri | Alexa or Siri |
| Connection | Wi-Fi and cellular | Wi-Fi and cellular |
SmartSpace places the third contact on the garage entry. On a home with no door from the garage, that contact goes on the side door or the most exposed first-floor window.
Equipment List
SmartSpace matches both panels to one carrier, Verizon or AT&T. Both packages ship 345S sensors, 2GIG-DW100-345 and 2GIG-PIR100-345. The EDGE panel also supports E+ Long Range sensors, 2GIG-DW10E-900 and 2GIG-PIR1E-900. Those are not in this 3-1.
| Package | Qty | Part | Item |
|---|---|---|---|
| GC Touch 3-1 | 1 | 2GIG-TOUCH-NA-VA or 2GIG-TOUCH-NA-AA | GC Touch panel, Verizon or AT&T |
| 3 | 2GIG-DW100-345 | 345S door or window contact | |
| 1 | 2GIG-PIR100-345 | 345S motion detector | |
| EDGE 3-1 | 1 | 2GIG-EDG-NA-VA or 2GIG-EDG-NA-AA | EDGE panel, Verizon or AT&T |
| 3 | 2GIG-DW100-345 | 345S door or window contact | |
| 1 | 2GIG-PIR100-345 | 345S motion detector |
SmartSpace can add an encrypted keyfob later. Labor, cable, and central-station monitoring are on the SmartSpace proposal, separate from these packages. This is residential security. SmartSpace does not provide commercial fire alarm.
Home Security Built for North Texas
Tell us about your home and we’ll walk the doors, windows, and rooms with you, then put the right package on paper.
